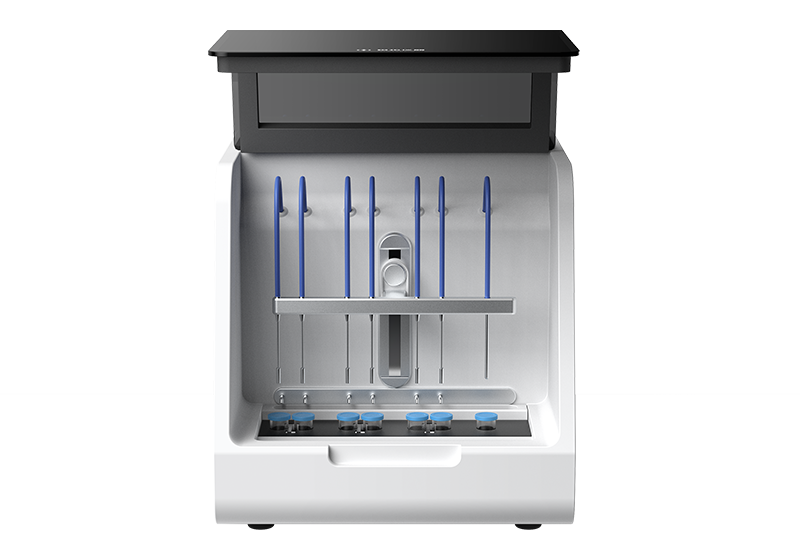

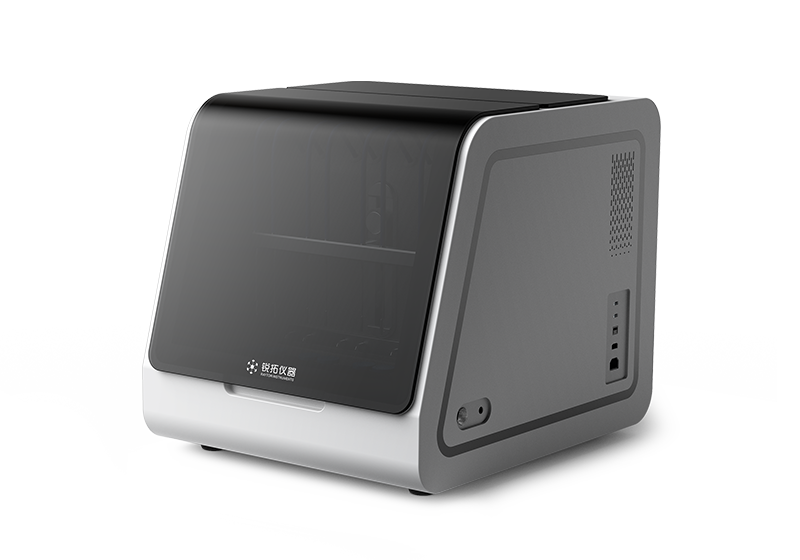

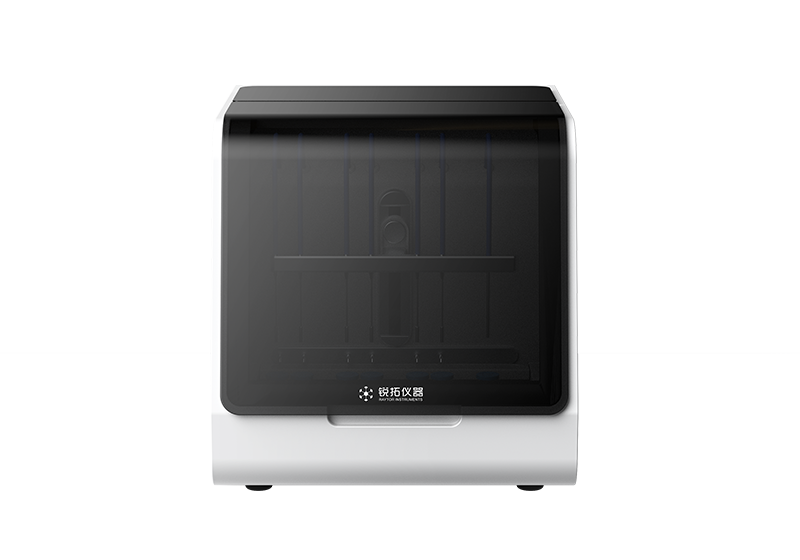

एनसीई डीपी विघटन और पारगम्यता परीक्षण उपकरण
एनसीई डीपी विघटन और पारगम्यता परीक्षण नामक उन्नत प्रौद्योगिकी मंच के माध्यम से वास्तविक समय एकाग्रता निगरानी संभव है। प्रणाली अपने ऑप्टिकल फाइबर सिस्टम के साथ मिलकर अपने जैविक मॉडल के माध्यम से विघटन और पारगम्यता विश्लेषण करती है जो सटीक माप प्राप्त करने के लिए मानव शरीर की प्रक्रियाओं को डुप्लिकेट करती है। प्रणाली बायोफर्मासिटिकल वर्गीकरण को बढ़ाने के लिए सटीक अवशोषण निगरानी प्रदान करती है। डेटा सटीकता सटीक अंदरूनी तकनीक पर निर्भर करती है और ग्राफिकल परिणाम विश्लेषण प्रभावशीलता को मजबूत करते हैं। प्रणाली परीक्षण नमूनों की खपत को कम करती है जो प्रयोगात्मक संसाधन उपयोग को अधिकतम करने में मदद करती है।
Learn More
Get Free Quote
Download Sheet
- Exclusive patented Accurate Inside algorithm
- Real-time monitoring of absorbance
- Graphical representation of experimental results
- Reduce the amount of sample required for the experiment
-
Description
-
These devices monitor concentration alterations using their six optical fibers in a perpetual check. The medium switching module functions as an automated system that enhances experiment flexibility by performing medium replacement tasks.
The bionic membrane uses intestinal absorption technology together with the auxiliary software for accurate and reliable data comparison.
Features

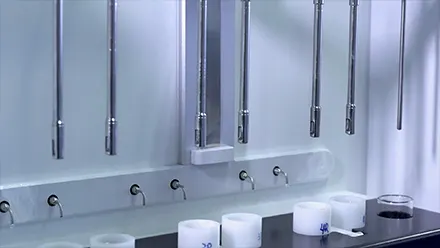

Real-time monitoring
The device is equipped with 6 optical fibers, which can monitor the concentration changes of samples in real time during the experiment.

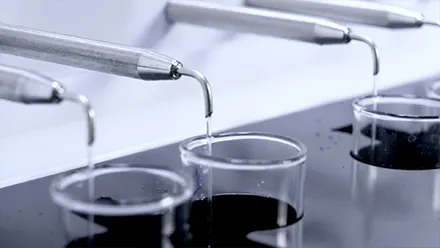

Medium switching module
For experiments that require medium switching, the medium switching module can automatically inject the medium at a specific time to complete the medium switching operation.

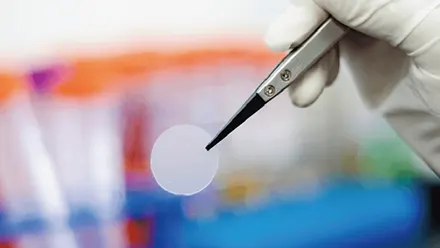

Bionic membrane
Bionic membrane is used to construct a permeation model to simulate the absorption of drugs by small intestinal epithelial cells.

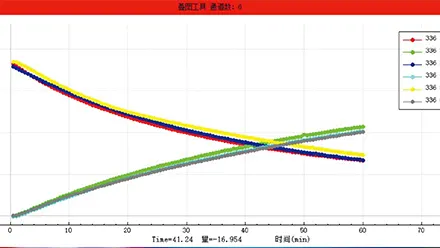

Auxiliary analysis software
Auxiliary analysis software can analyze data results and compare different experimental results, making the experimental results clear and easy to understand.
Application
Drugs have complex dissolution and permeation behaviors in the body, so the impact of the in vivo environment on the drug needs to be considered during the early drug development or prescription modification process. For this purpose, it is necessary to construct an in vitro environment that can simulate the in vivo environment for experimental research.
-
Intrinsic Dissolution Rate Test
-
PH Shift Model
-
Permeation Model
Specifications
Product Brochure
Dissolution&Permeation Analyzer
|
Wavelength range: 200~750nm |
Absorbance linear range: 0.01~3AU |
|
Wavelength accuracy: 1nm |
Detector type: Deuterium lamp |
|
Absorbance accuracy: ±0.001AU |
Minimum acquisition frequency: 1 second/time |
|
Reactor channel: 6 |
Fiber channel: 6 |
|
Light source life: >1000h |
Room temperature range: room temperature~40℃ |
|
Temperature error: ±0.5℃ |
Speed range: 100~1000rpm |
|
Speed resolution: 1rpm |
Liquid addition accuracy: <1% |
