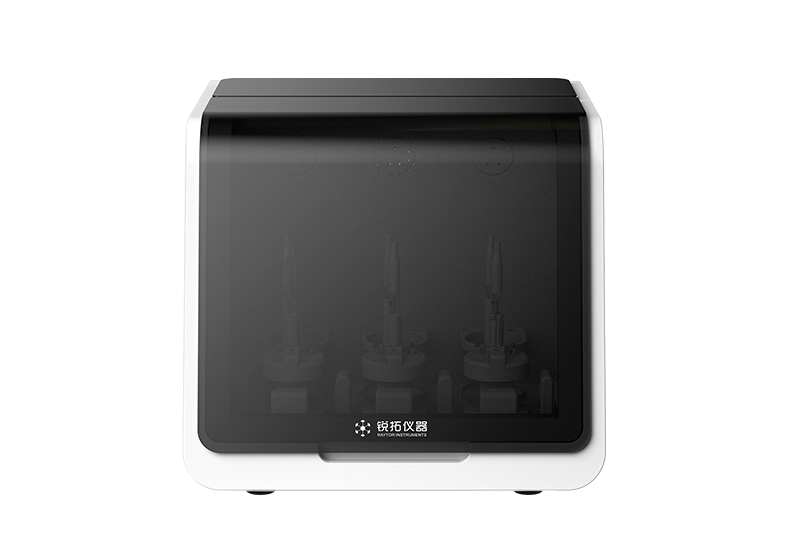

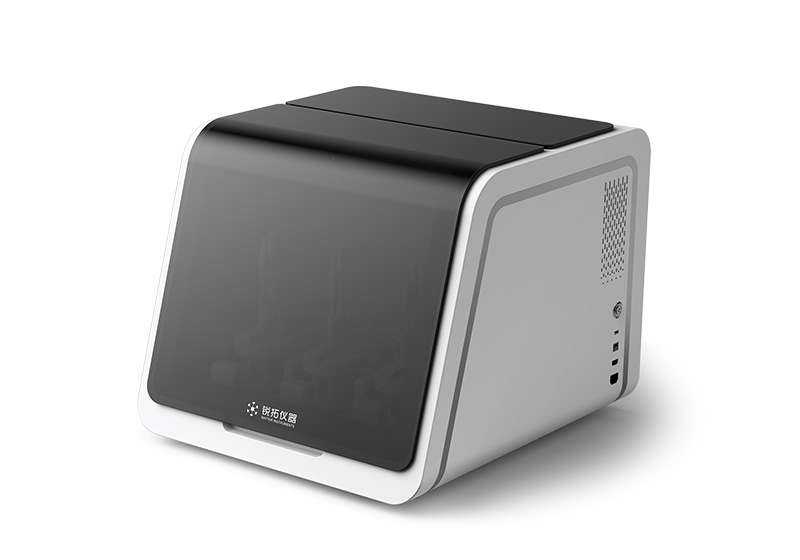

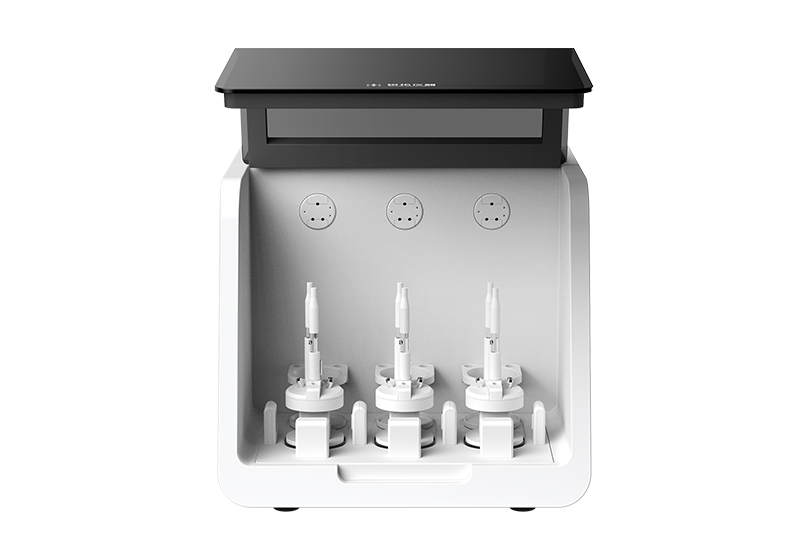

NCE SI चमड़े के नीचे इंजेक्शन विश्लेषण प्रणाली
एनसीई चमड़े के नीचे इंजेक्शन विश्लेषण एक परीक्षण उपकरण के रूप में कार्य करता है जो उन परिवर्तनों और तनाव कारकों का अनुकरण करता है जो पेप्टाइड्स और छोटे अणु दवाओं के साथ बायोफर्मासिटिकल्स चमड़े के नीचे प्रशासन के बाद सामना करते हैं। डिवाइस विवो में दवा रिलीज पैटर्न का आकलन एक विधि के माध्यम से करता है जो बाह्य मैट्रिसेस में पारगम्यता के साथ दवा विघटन को पुन: पेश करता है।
Learn More
Get Free Quote
Download Sheet
- Greatly save animal resources
- Speed up prescription development
- Reduce research costs
- Simple and reliable operating software
-
Description
-
Camera System
Real-time drug release behavior can be recorded by the camera for drug performance assessment.
Grating System
A light-intensity recording device powered by an external source measures extracellular drug sediments while the system operates.
Duel Chamber Structure
The device consists of two chambers where the inner section represents subcutaneous tissue conditions while the outer area represents systemic circulation parameters.
Features

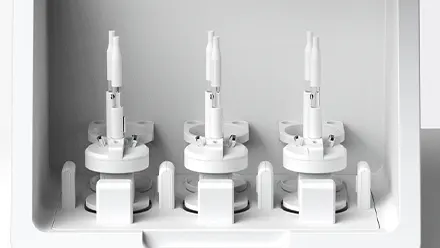

Duel Chamber Structure
The inner chamber simulates the subcutaneous tissue environment, and the outer chamber simulates the systemic circulation environment.

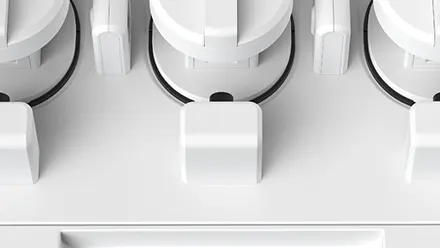

Camera System
Record the release behavior of the drug in real time through the camera to assist in judging the drug performance

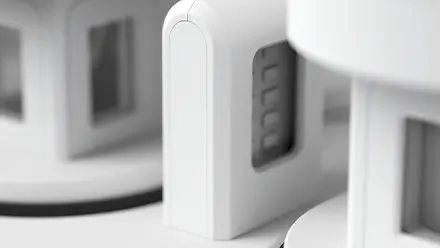

Grating System
Equipped with an external light source, it can record the changes in light intensity during the experiment and judge the sedimentation behavior of the drug in the extracellular matrix.

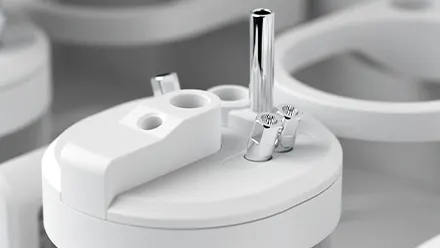

Fiber optic system
The drug concentration changes in the device are monitored in real time through optical fiber, making the test results more accurate.
Application
Product application (experimental dosage forms):
Simulate the dissolution and penetration of drugs under the skin by constructing an in vivo subcutaneous environment.
-
Macromolecule biological preparations
-
Peptide drugs
-
Small molecule subcutaneous injections
Specifications
Product Brochure
Subcutaneous Injection Analyzer
|
Number of channels: 3 |
pH range: 4~10 |
|
Stirring rate: 100~1000rpm |
Stirring accuracy: ±10rpm |
|
Wavelength range: 200~850nm |
Minimum acquisition time: 1s |
|
Wavelength accuracy: 1nm |
Temperature range: room temperature~40℃ |
|
Light source type: deuterium lamp |
Light source life: >1000h |
