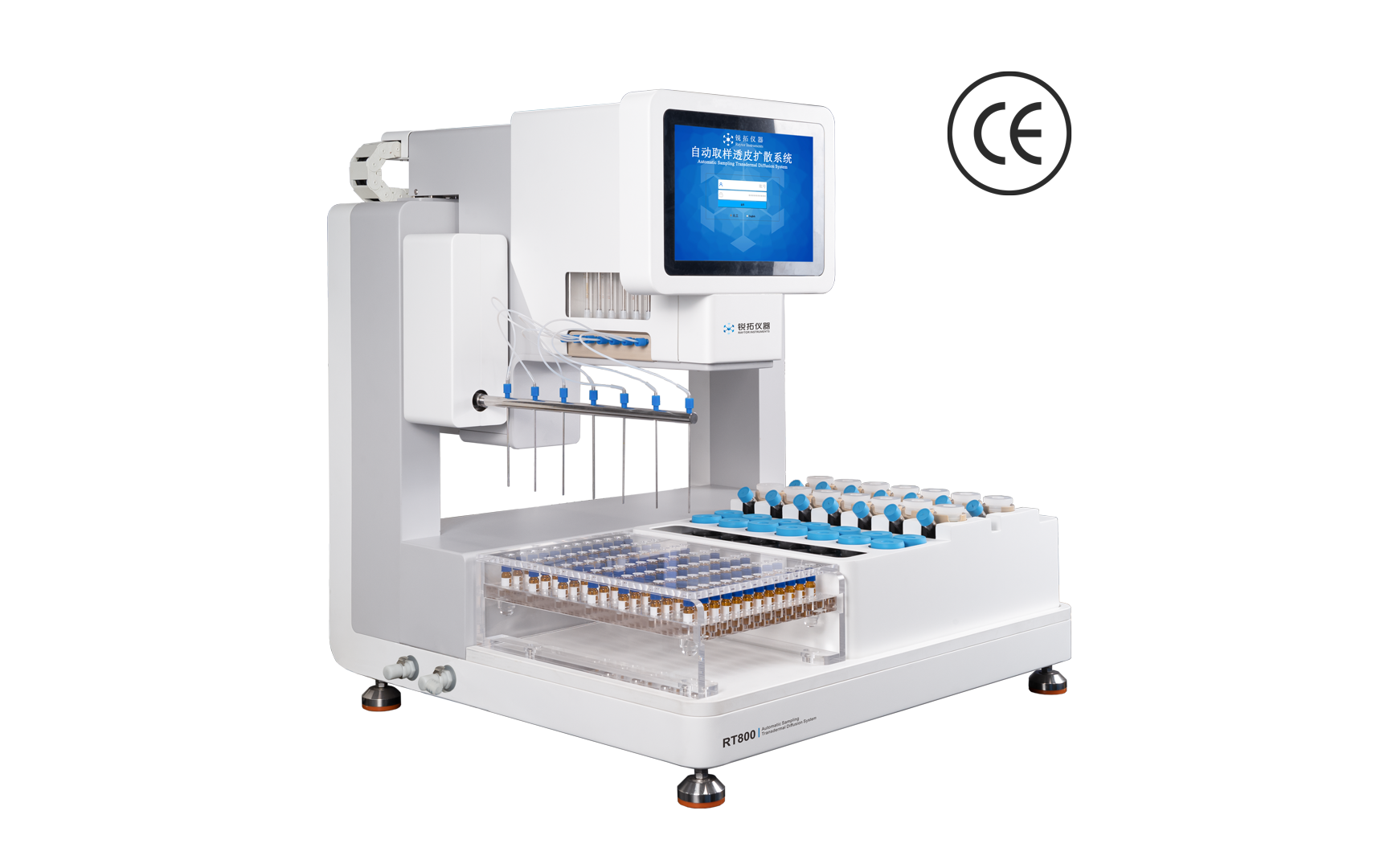

RT800 स्वचालित नमूनाकरण ट्रांसडर्मल प्रसार प्रणाली
RT800 स्वचालित नमूनाकरण ट्रांसडर्मल प्रसार प्रणाली फ्रांज प्रसार कोशिकाओं और एक स्वचालित नमूना उपकरण से मिलकर बनती है। यह यूरोपीय फार्माकोपिया (EP9.0) का अनुपालन करता है: सामान्य नियम<2.9.4 ट्रांसडर्मल पैच के लिए विघटन परीक्षण> और संयुक्त राज्य अमेरिका फार्माकोपिया: सामान्य नियम<1724> सेमीसॉलिड ड्रग प्रोडक्ट्स - इन विट्रो रिलीज टेस्ट (IVRT) और इन विट्रो पारगम्यता परीक्षणों (IVPT) के लिए प्रदर्शन परीक्षण आवश्यकताएं। स्वचालित संचालन के माध्यम से, यह परीक्षण परिणामों की सटीकता में सुधार के लिए जटिल सफाई, नमूनाकरण और रिफिलिंग कार्यों को प्राप्त कर सकता है।
Learn More
Get Free Quote
Download Sheet
- Complies with regulation USP<1724>
- 7 channels synchronized automatic sampling
- Meet audit trail requirements
- Shorter pipeline design effectively reduces sample residue
-
Description
-

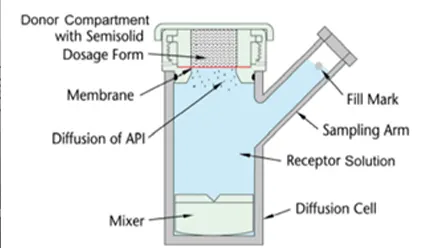

The diffusion cell standard meets the description of the 5thtype diffusion cell in USP<1724>. The open operating space is convenient for loading and sampling. The mark of the injection position can indicate whether the diffusion cell is filled normally. The diffusion cell is easy to be removed from or put on the equipment, which is convenient for checking and discharging bubbles.
The equipment has a complete audit tracking function and SQL database. The operating system can store no less than 200 test methods and no less than 100 accounts
Features
Compliant diffusion cell style
Compliant with the diffusion cell style recommended by USP<1724>

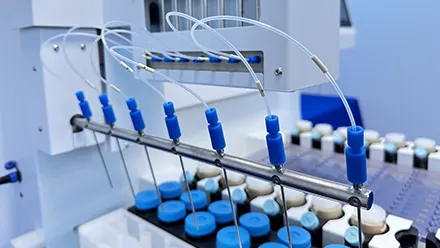

Shorter pipeline design
The sampling pipeline is shorter, which can reduce the risk of pipeline residue.
The number of diffusion cell: 6+1
A group can conduct up to 7 diffusion cell tests, so a blank group can be designed to exclude other interference.

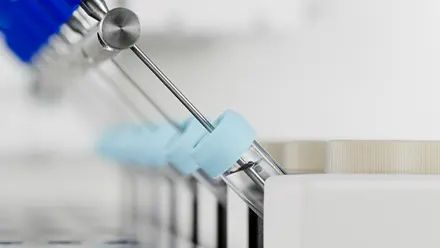

Simultaneous sampling design.
When sampling, the diffusion pools in the same group will be sampled at the same time to reduce the impact of sampling time on the test results

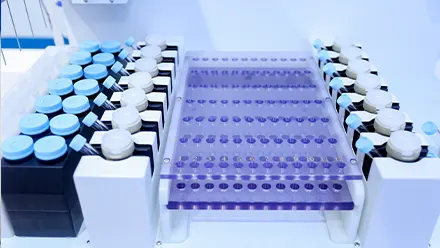

Two groups independent design
The two groups of diffusion cells can be used for testing at the same time without interfering with each other.

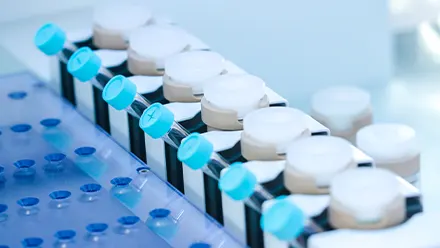

Filling point design
The filling point is marked on the diffusion cell. After removing the bubbles, the medium is injected to the filling point to ensure that no bubbles are generated in the future.
Application
Meet the test requirements of USP<1724> for in vitro release and in vitro permeation of semi-solid preparations
-
creams
-
ointments
-
patches
-
gels
Specifications
Product Brochure
Automatic Sampling Transdermal Diffusion System
|
Diffusion cell position: 7×2 |
Sampling channels: 7 |
|
Diffusion cell volume: 10ml, 15ml, 20ml, 25ml, 30ml, 40ml |
Sampling times: ≤24 |
|
Sampling range: 0.2~1.5ml |
Temperature error: ≤±0.5℃ |
|
Temperature range: room temperature~45℃ |
Speed range: 200~900rpm |
|
Speed error: <±10% |
Heating method: dry heating |
|
Manual bubble exhaust |
Maximum sampling time: 9999mins |
